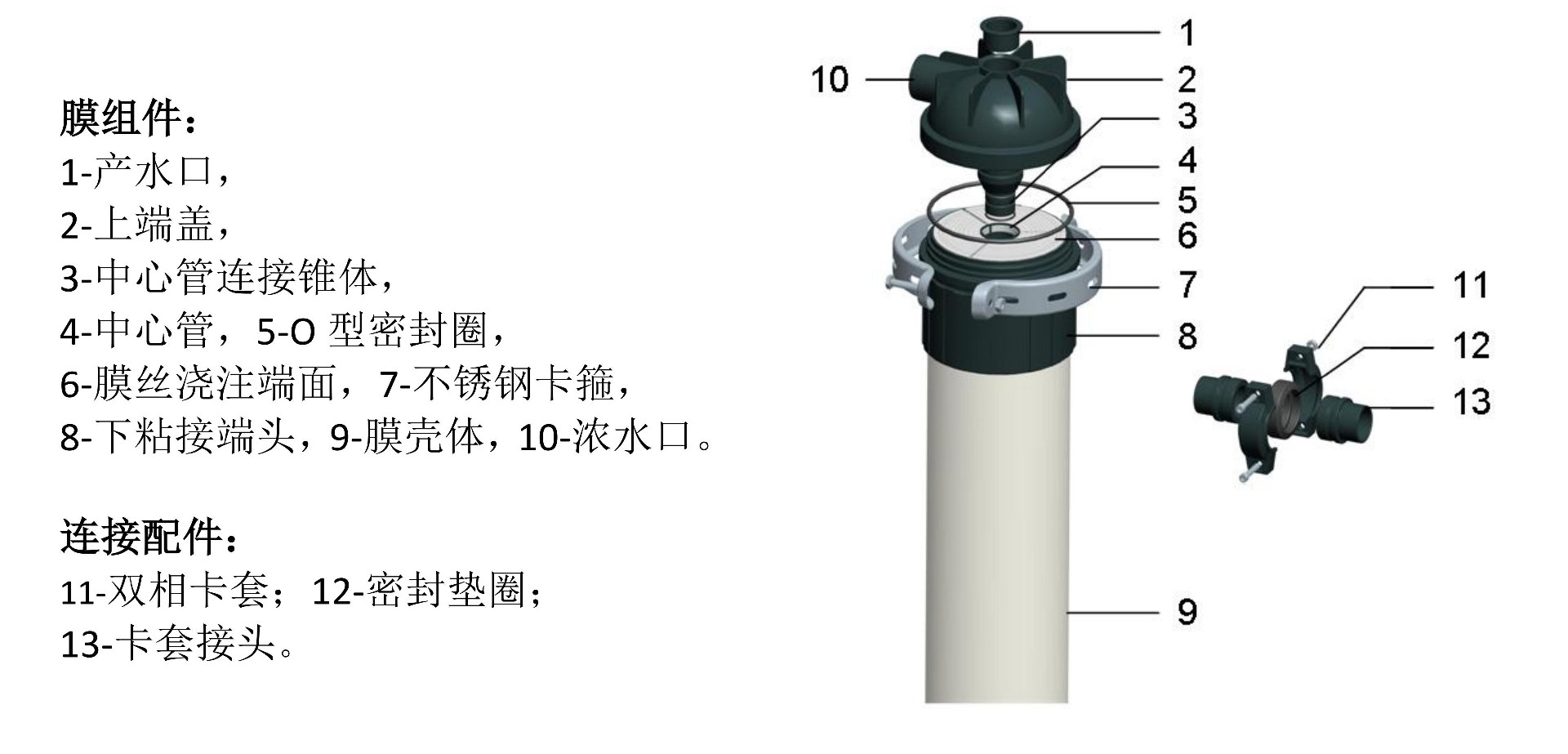

1.Structure of CC-UFO10060 10-inch PVDF Ultrafiltration Membrane Module

2.Basic Performance Parameters of CC-UFO10060 10-inch PVDF Ultrafiltration Membrane Module

Model: UFO 10060

Membrane Material: PVDF (Polyvinylidene Fluoride)

Membrane Pore Size: 0.03 μm

Hollow Fiber Inner/Outer Diameter: Outside-in type, 0.7 mm / 1.3 mm

Operating Mode: Dead-end or cross-flow filtration

Shell Material: UPVC

Effective Surface Area (㎡): 80

Design Water Production Rate (based on feed water conditions): 35–80 L/㎡·h · 1 bar · 25°C
