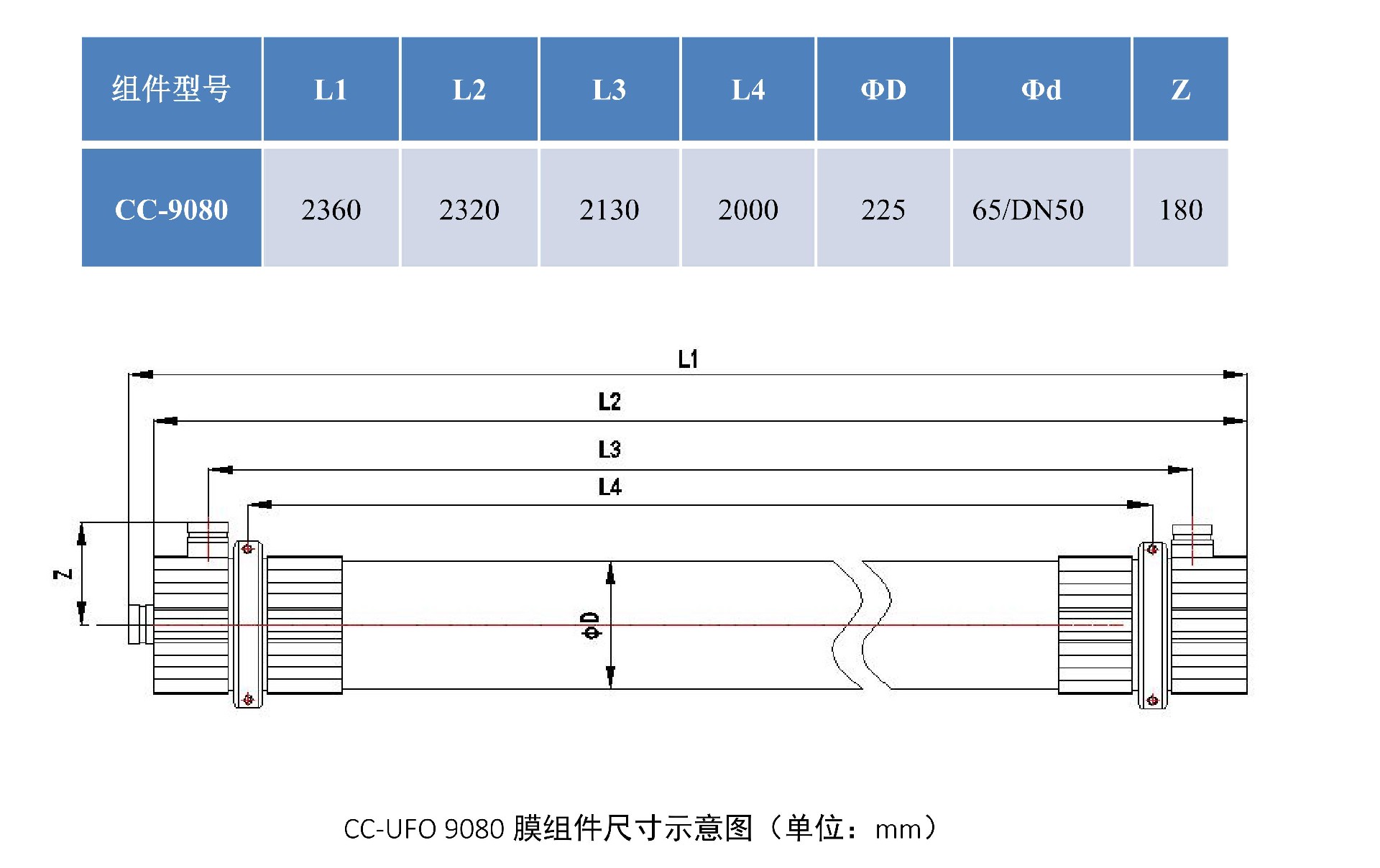

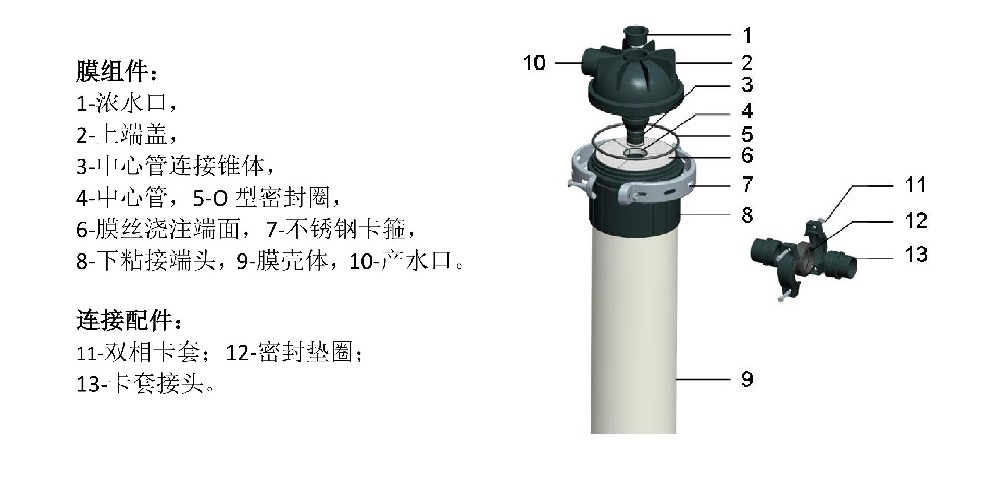

1.CC‑UFO9080 Ultrafiltration Membrane Module Structure

2.CC‑UFO9080 Ultrafiltration(UF） Membrane Module Basic Performance Parameters

Model: UFO 9080

Membrane Material: PVDF (Polyvinylidene Fluoride)

Membrane Filtration Pore Size: ~0.02 μm

Hollow Fiber Inner/Outer Diameter (mm): Outside‑in type, 0.7 / 1.3

Operation Mode: Dead‑end Filtration or Cross‑flow Filtration

Fiber Bonding Material: Epoxy Resin / Polyurethane

Housing Material: UPVC

Effective External Surface Area (m²): 77

Module Wet Weight (kg): 50

Design Water Production Rate (depending on feed water quality): 35–80 L/(m²·h) @ 1 bar, 25 °C

3.Application Fields of Hollow Fiber Ultrafiltration Membrane

Advanced purification of tap water for direct drinking water production;

Removal of turbidity and bacteria from groundwater and surface water;

Pretreatment for seawater desalination / reverse osmosis systems;

Advanced treatment and reuse of industrial and municipal wastewater;

Replacement of conventional filtration methods such as sand filtration and multi‑media filtration;

Purified water supply for industries including steel, power plants, food & beverage, and healthcare.
